Tractors

Antonio Carraro Tractor TR 7600 INFINITY

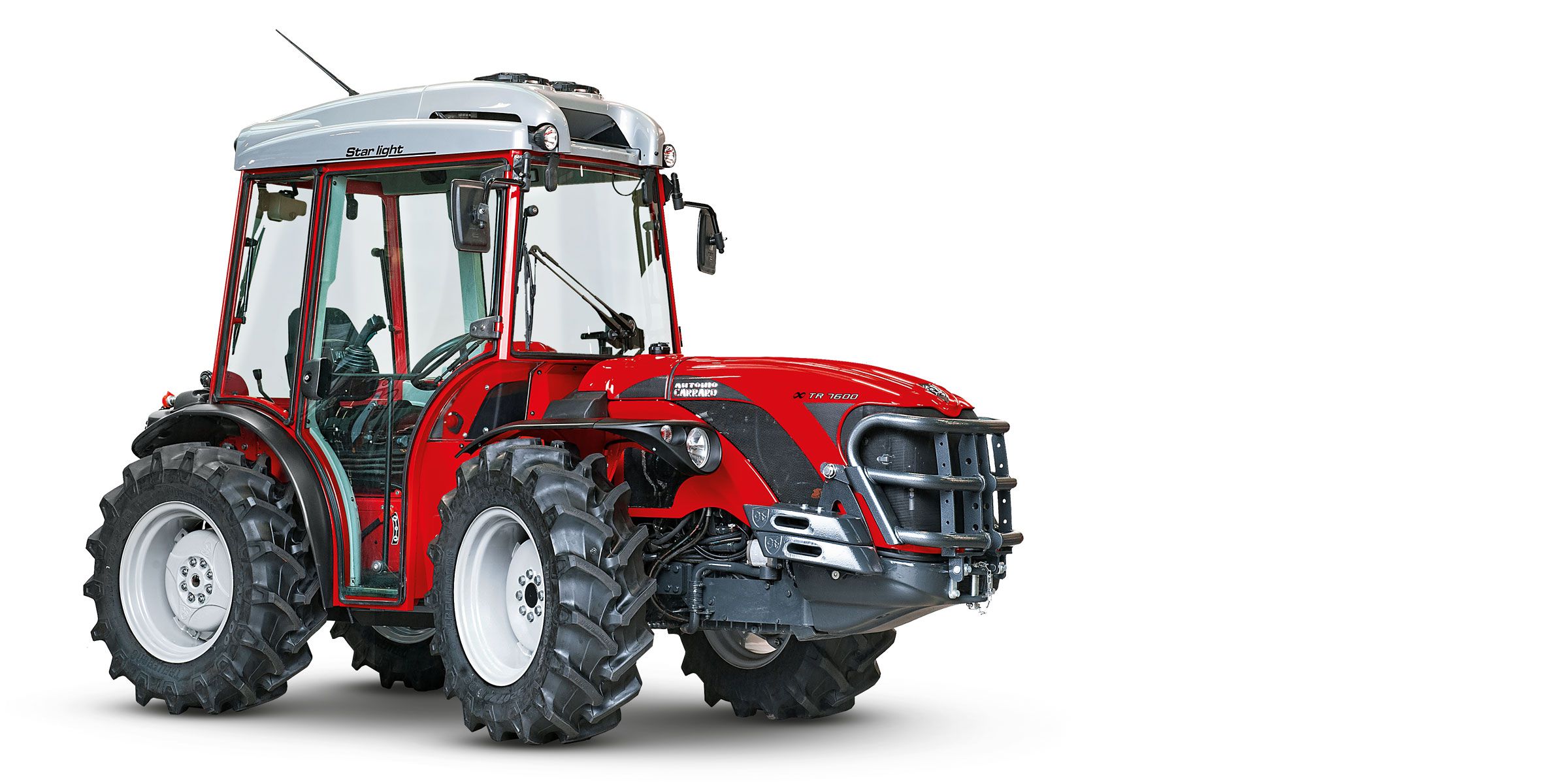

TR 7600 Infinity
Reversible with hybrid transmission

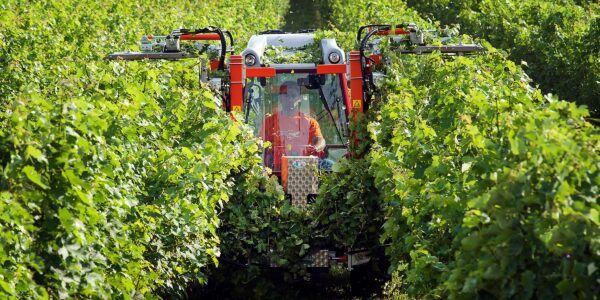

TR 7600 Infinity is the isodiametric tractor by Antonio Carraro with hybrid mechanical/hydrostatic transmission, designed for specialized agriculture, road maintenance and greencare. It can also be used for vineyards and orchards, haymaking, earthmoving, road cleaning, banks and slopes.

The 75 hp, 4 cylinders engine, propels the tractor up to 40 km/h, assisted by the hydrostatic transmissione Infinity in both directions of travel, with two mechanical ranges – 3 speeds each, shiftable while in action with no loss of traction or power interruption.

MAKE:Antonio Carraro

Horsepower:75 hp

REQUEST MORE INFO PDF BROCHURE
StarLight
CLOSED CAB
StarLight is the Antonio Carraro closed cab assembled on Silent Block anti-vibrating device. It is equipped with front/rear windscreens, total-glass doors, double sunroof with sunscreens and portholes with view on wheels and devices, thanks to which it offers on-board brightness and total visibility.
The smooth design is functional to its performance through side-sloping rows or underfoliage. StarLight’s compactness allows agility in the most narrow spaces with neither fruit nor flowers damage.
The soundproof clothing of the driver’s station grants acoustic comfort.
The main controls are in ergonomical position.
The ventilation system  features a rapid front windscreen defogging system. he incoming air is cleaned by a large filter, with an available activated carbon filter. The air-conditioning is achieved by a powerful system running on ecological coolant, which also refreshes the cabin air using a low rev motor. The heating system utilizes a powerful heat exchanger which is most exceptional even in the coldest weather. The roof can be opened to lift the electric fans for quick maintenance intervention. StarLight offers also two rear and two front lights – all adjustable. Two adjustable rearview mirrors, foldable plate holder, glovebox, electrical setup and speakers for stereo system, are other details of the onboard comfort of Starlight. As every Antonio Carraro cab, Starlight is certified as anti-capsizing device.
EasyStar
MULTI-PURPOSE MODULAR FRAME
EasyStar 6-post cab is a must-have device to protect the operator from sun, bad weather and dust.
Starting from the standard configuration (6-post frame and sunroof), one can add front and rear windscreens and the doors set.
Covered by Antonio Carraro warranty, EasyStar is safer than many untested, uncertified products at the same cost.
In addition to its unmatched quality, its design is pleasant and perfectly suitable to the chosen tractor.
Uniflex
UNIFLEX® SUSPENSION
The UNIFLEX* suspension with electronic control allows for part of the weight of the equipment to be transferred to the tractor’s wheels. The reduction of specific ground pressure leads to numerous positive effects:
Lower compaction
Less resistance to pushing and pulling
Greater productivity
Lower fuel consumption
Greater grip
Greater stability
DampingThe UNIFLEX suspension with coaxial cylinders maximises its efficiency thanks to a reduced number of friction points.  Its innovative concept allows the equipment to follow and adapt itself to the contours of the ground, keeping the ground pressure constant thus benefitting speed and work precision.
Trasmissione Infinity
TR has two mechanical speed ranges (0-15 and 0-40 km/h), each offering three hydrostatic speeds, which can also be engaged while travelling without loss or traction or power interruption; all comfortably controlled using the joystick fitted as standard.
Tempomat / Cruise Control – Revolution and speed active independent control system. Both can be kept constant also in case of inconsistent stresses.
Eco – Consumption and noise reduction system that automatically takes the engine from the maximum revolution regime to the minimum required for maximum speed (40 km/h).
Advancement pedal – assisted braking also in case of slopes, with complete safe stop of the vehicle upon release of the accelerator, even when not using the brakes or the clutch.
ACS – Automatic Cleaning System, new self-cleaning radiator system .
PTO – 540-540E synchronized with progressive electro-hydraulic engagement, on demand 540-1000.
*optional

POWER                  75 HP

ENGINE                  Kohler – Turbo STAGE 5 – 4cyl – 16V – 2482cc

TRANSMISSION    Infinity

WEIGHT (KG)        2205÷2315 rollbar- 2365÷2475 cab

CAPACITY (KG)     2400
