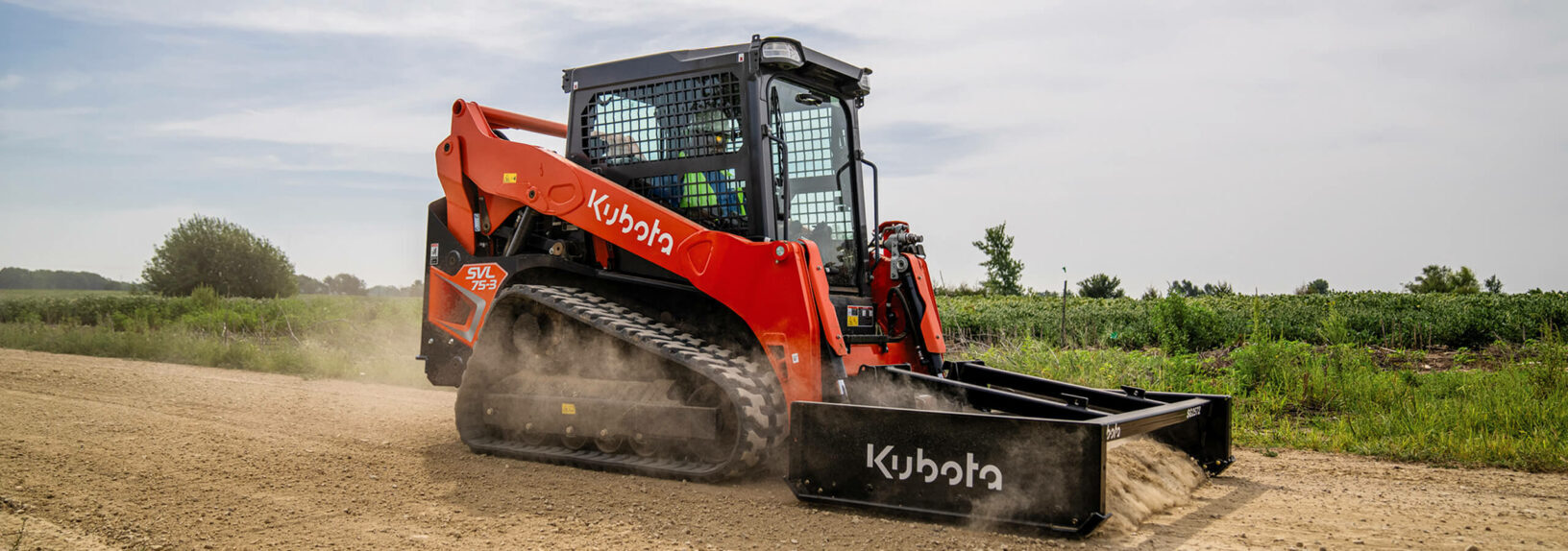

Powered by a 74.3HP Kubota engine, boasting exceptional 2814KG bucket breakout force and outstanding lifting capacity at 2214KG, the Kubota SVL75-3 takes high performance and productivity to a new level. The new high flow model has increased hydraulic flow for the ability to operate a variety of attachments that require more hydraulic horsepower, with the versatility to meet your every need..
MAKE:Kubota
Horsepower:4.2 Tonne 74.3HP engine
The all new SVL75-3 replaces the proven SVL75-2 and is Kubota’s latest track loader with a wide range of new features, improving performance and comfort.
Powered by a Kubota 74.3HP engine and now with higher torque, the SVL75-3 can take on any task whether that’s digging, dumping, grading or moving materials.
Other new features include a new one-piece cabin, advanced hydraulic system, 7″ LCD touch screen with keyless start and integrated reverse camera, updated engine layout design and much more including the well-known front sliding window.
The standard flow and high-flow models allow you to operate a variety of attachments from our SSV & SVL performance matched attachments range.
The SVL75-3 now features a fully sealed one-piece pressurised cabin, preventing any dirt, dust, water or any debris ingression, allowing a clean environment for the operator. The luxurious cab delivers operator comfort with a wide entrance, ergonomically designed controls and front sliding window to easily enter and exit the cabin. There are also 6 vents consistently placed throughout the cabin improving A/C or heating flow, ensuring optimal working conditions all year round. Further to this, the A/C filter is positioned at the top of the cab which filters clean air through the cabin.
| Model | SCL75-3 | |||
| Type of Operator Station | Closed CAB | |||
| Engine | Model | V3307-TE5A-CTL-Q | ||
| Output (SAE J1995 Gross) | HP (kW) /rpm | 74.3 (55.4) / 2400 | ||
| Output (SAE J1349 net) | HP (kW) /rpm | 73.2 (54.6) / 2400 | ||
| Displacement | cc | 3331 | ||
| Clinders | 4 | |||
| Bore x Stroke | mm | 94 x 120 | ||
| Aspiration | Turbocharged | |||
| Loader Performance | Rated operating capacity-35% tipping load | kg | 1129 | |
| Tipping load | kg | 3226 | ||
| Breakforce | Bucket | kg | 2808 | |
| Lift Arm | kg | 2142 | ||
| Undercarriage | Track width | Standard | mm | 320 |
| Wide | mm | 400 | ||
| Ground Pressure | Standard | psi | 5.9 | |
| Wide | psi | 4.8 | ||
| Track rollers (per side) | 4 | |||
| Track gound contact length | mm | 1436 | ||
| Travel speed | Low | km/h | 9 | |
| High | km/h | 13.7 | ||
| Traction force | kgf | 4390 | ||
| Min. ground cleanance | mm | 296 | ||
| Hydraulic system | Aux. hydraulic flow | Std. high Flow | lt/min | 72.7 / 112.8 |
| Aux. hydraulic pressure | kgf/cm2 | 224 | ||
| Service refill capccities | Hydraulic system | lt | 46 | |
| Hydraulic tank | lt | 16.1 | ||
| Fule tank | lt | 94.6 | ||
| operating weight (includes operator weight 75kg) | kg | 4273 | ||
